WiFi Dynamic Face Time Attendance Machine Facial Biometric System Software 125KHz/13.56MHz RFID Access Control Keypad TCP/IP/USB

All devices supprot TCP/IP/USB. Provide free software and English instruction. Can be used as a access controller to open the door. Besides, can be used as a time attendance machine for the employees.

Kit 1: Support Face, password verification. NOT Support RFID Card. Not support WiFi.

Kit 2: Support Face, password verification. Support RFID Card. Not Support WiFi.

Kit 3: Support Face, password, Not Support RFID Card verification. Support WiFi.

Kit 4: Support Face, password verification. Support RFID Card. Support WiFi.

Dynamic Face Facial Recognition

Access Control Time Attendance Machine

Face / Password / RFID Card / Wifi (optional)

Product Features:

1) 4.3inch TFT LCD Color screen. Made of high quality material.
2) Working with DC12V, will supply a DC12V power plug.
3) Has high-resolution infrared night vision light and professional color duo camera, can carry out quick verification in any environment.
4) Dual light source ( 2 infrared ligth + white light). Can be recognize even at dark.
5) 0.1s identification speed, Very fast! Support face detection distance 0.5-2 Meters.
6) Working with both 125KHz and 13.56MHz frequency. Support both EM and Mi-fare cards.
7) Support 2000 facial, 2000 password, 2000 RFID card (Optional ), 200000 record capacity.
8) Supports face, password, RFID card and various combination methods, in order to satisfy the demands of different users.(optional)
9) T9 input method editors, on the machine name, Department, frequency and other information, can be directly output attendance reports, very easy to operate.

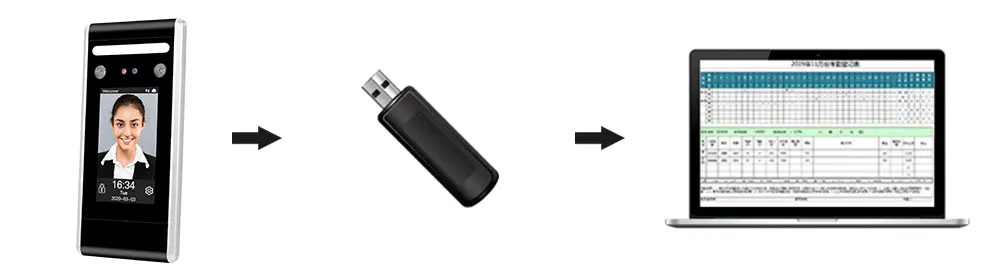

10) Support WIFI / TCP/ IP communication method. Support USB Flash drive upload download attendance data. (Optional)
11) Has Wiegand26/34 input/output, TTL input/output, relay output
12) Support English menu and humanized voice prompt.
13) Recognizes normally even when wearing a mask. Can't be recognize with photos or video.
14) Suitable for the entrances and exits of office, factory, hotel, school, etc.

Product Details

4.3inch TFT LCD Touch Color Screen. English interface

Very easy to operate

Dynamic Face Identification. Save a lot of time

Wide angle detection of dynamic faces, fast face recognition in 0.1 seconds

the recognition distance is up to 2 meters

Intelligent face recognition

Easily deal with all kinds of problems

Item not only prevents employees from using photo or video attendance, but also intelligently recognizes changes in your appearance. Even if you have makeup, hats, and glasses, you can quickly identify them without queuing.

Bulit in HD Dual light source ( 2 infrared ligth + white light)

Can be recognize even at dark

With its high-resolution infrared night vision light and professional color duo camera,

it can accurately identify and verify the second speed even in the extremely dark or extremely bright environment.

​

1 x Face access control machine

10 x RFID Keyfobs (optional)

1 x CD (including the software)

1 x Bracket

1 x Screw kit

1 x Power plug

1 x User manual

Very Important:

Please leave a message which type of the power plug you want, otherwise, we will send EU type by default.

Product Specifications:

Material: high quality plastic
Processor: 4-core 1.2G
Operating memory capacity: 1G DDR3
Storage capacity: 8G eMMC
Operating system: LINUX intelligent operating system
Display: 4.3 inches
Screen resolution: 480 * 272
Camera: 200W pixel HD color camera, 100W infrared camera
Fill light: LED highlight fill light, dual infrared high power fill light
Ambient light: 0-50000Lux
Dynamic range: 120dB
Face capacity: 2000
Password capacity: 2000
Card capacity: 2000 groups
User records: 200,000
Identification method: face, password verification, card (optional)
Face recognition mode: 1: 1, 1: N
Identification function: name identification, work number identification
Face recognition time: less than 200MS
Intelligent function: infrared live detection
Recognition distance: 0.5-2 meters
Keyboard: On-screen touch virtual keyboard
Communication interface: TCP / IP, USB, WIFI (optional)
Rejection rate: <= 0.1%
Misunderstanding rate: <= 0.0001%
Working voltage: DC12V ± 10%
Power requirements: DC 12V, 3 ~ 5A
Working temperature: -15 ° C to 60 ° C, <90 ° C RHIP65
Appearance size: 200mm * 95mm * 25mm

Identification distance is 0.5-2 meters, installation height can be 1.2-1.5 meters

​

Wiring Diagram:

1. If you want to use it as face time attendance machine, just connect it to a DC12V power plug then ok. (this package including a power plug)

2. If you want to use it as a face access control keypad, then must need to work with DC12V power supply, electric lock, exit button. (Note: both of the access control power supply, locks, exit button, door bell are NOT included in the package, need to buy extra)
